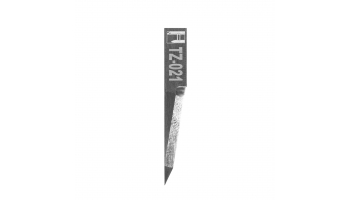

Aoke-Kasemake blade Z21 / 3910314 / HTZ-021 HTZ21 knife knive Aoke-Kasemake
Aoke-Kasemake blade Z21 / 3910314 / HTZ-021 / compatible for Aoke-Kasemake automated cutting machine

Aoke-Kasemake blade Z21 / 3910314 / HTZ-021 / compatible for Aoke-Kasemake automated cutting machine

HTZ-021
€13.20
Tax excluded ATTENTION - Minimum quantity 5 required in the products of these categories Multiple quantity: 5

Equivalent Z-21 / 3910314

Aoke-Kasemake Blade Z21 / 3910314 / HTZ-021 / compatible knife for Aoke-Kasemake automated cutting machine

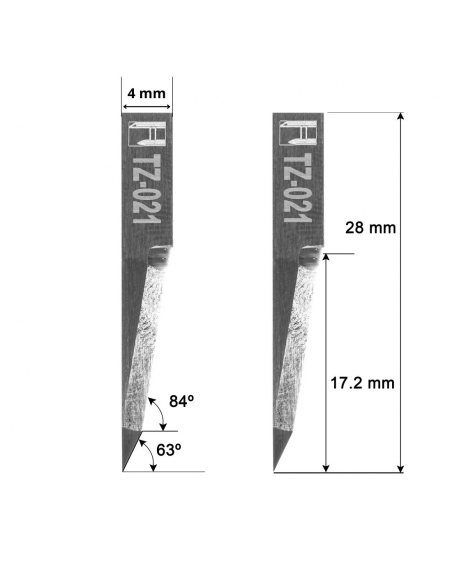

Description: Similar to the HTZ-020 but with a height of 17.2 mm and a greater depth of cut, up to 16.2 mm. Very fine, delicate knife with minimal overcut; designed for cutting complex geometries, small radii and complex details.

Thickness: 0,63 mm.

Tools: Electric Oscillating Tool and Pneumatic Oscillating Tool.

Composition: Tungsten Carbide - HM - Hard Metal.

Materials: Corrugated cardboard - Solid Cardboard - Honeycomb materials-  Leather hard - Leather hide - Leather suede -Magnetic foil - PP Corrugated plastic - Sandwich board - Polyester fabrics - Rubber - Carpet - Foam  PE - Foam PUR - Foam board

The minimum purchase order quantity for the product is 5.

Quantity Unit price You Save
20 €11.90 €26.00
100 €10.50 €270.00

You might also like

High Quality Products and Service
  • Hitacs manufactures blades under the highest ISO 9001 quality standards.
  • We respect the optimal geometries in the manufacture of blades for automated cutting machines.
  • We reduce the prices of consumables for cutting machines.
  • We increase the productivity of our customers.
  • Urgent delivery of orders.
  • Personalized customer service
  • Secure payments under SSL certificate.
  • 100% Satisfaction Guarantee.

iso9001-hitacs  ssl-hitacsdelivery-hitacs

Description

Equivalent Z-21 / 3910314

Aoke-Kasemake Blade Z21 / 3910314 / HTZ-021 / compatible knife for Aoke-Kasemake automated cutting machine

Description: Similar to the HTZ-020 but with a height of 17.2 mm and a greater depth of cut, up to 16.2 mm. Very fine, delicate knife with minimal overcut; designed for cutting complex geometries, small radii and complex details.

Thickness: 0,63 mm.

Tools: Electric Oscillating Tool and Pneumatic Oscillating Tool.

Composition: Tungsten Carbide - HM - Hard Metal.

Materials: Corrugated cardboard - Solid Cardboard - Honeycomb materials-  Leather hard - Leather hide - Leather suede -Magnetic foil - PP Corrugated plastic - Sandwich board - Polyester fabrics - Rubber - Carpet - Foam  PE - Foam PUR - Foam board

Product Details

Equivalent
3910314
Z21
Thickness / Type
0.63 mm
Max. cutting depth
17,2 mm
Pre-cut
1.6 + 0.11 x Tm
Post-cut
-
Composition
Tungsten Carbide - HM - Hard Metal
Tool
Pneumatic Oscillating Tool (POT) / Pneumatic Oscillating Cutting Tool
Recommended materials
Carpet
Corrugated cardboard
Corrugated plastic
Espuma PE y PUR
Folding carton
Leahter hard
Leather hide
Leather suede
Magnetic material
PP
Polyester fabric
Rubber
Associated brands of raw materials
Airplac Foamboards
Egafix
Espanso Cartonato
Foam-X
Forex
Gatorfoam
Kapamount
Kapaplast
Kromaplast
Maxxboard
Compatible Brand
Aoke-Kasemake
Aristo
Atom
Balacchi
Blackman & White
Comagrav
Combi Pro
DYSS
Delta Diemaking
Esko Kongsberg
Filiz
Humantec
Ibertec
KSM
Lectra
Mimaki
Mécanuméric
SMRE
Samurai
Summa
Torielli
USM
Wild Leica
Zünd
iEcho
